Keyfeatures
Dual-Gauge Charging Panel – Calibrated inlet and outlet gauges enable controlled oxygen charging at 2,400 psi.
Single-Person Easy-Load – Manual or hydraulic cylinder trays allow safe simultaneous loading and off-loading.
Self-Venting Regulation – Self-venting regulator, isolation valve, and relief valves maintain stable, safe operation.
Auto-Retract Hose Reel – 9-meter hose in a weatherproof cabinet provides flexible servicing reach around the aircraft.
Tow-Ready & Grounded – Front tow bar with 50 mm eye and earth grounding reel support ramp mobility and safety.
Highlights

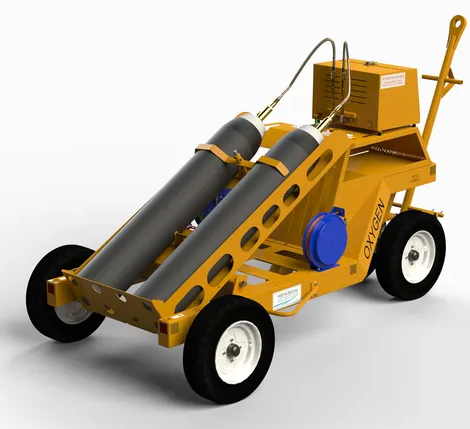

NBOT oxygen carts standardize high-pressure, single-operator oxygen servicing with certified panels and easy-load handling.
Airbus
All types
Boeing
All types
Business Jets
All types
Application Cases
Line & Base Maintenance – Oxygen system replenishment and checks across commercial, regional, and business aircraft.
Turnaround Support – Fast, single-operator cylinder handling for efficient ramp operations.
Configuration Options
Safety & Operation
Certified charging panel includes calibrated inlet and outlet gauges with self-venting regulation.
Secondary isolation and pressure-relief valves provide controlled charging and shutdown.
All oxygen-wetted components are oxygen cleaned, certified, and traceable.
Heat-soak stems and oxygen-grade hoses reduce static and temperature rise during fill.
Grounding reel and cable support safe dissipation of static electricity.
Mobility & Transport
Front-mounted tow bar with 50 mm towing eye enables straightforward maneuvering; optional 76 mm available.
Articulating front axle enhances stability and durability while towing on the ramp.
Compact footprint and integrated hose reel simplify positioning in hangar and line environments.
Durability & Corrosion Protection
Zinc-phosphate primer with powder-coat finish (RAL 1028) resists wear and environmental exposure.
Weatherproof cabinet protects gauges, regulators, and reels during outdoor operation.
Readily available spare parts and components support long-term serviceability.
Why RH Aero?
Certified Safety—Operational Efficiency
NBOT carts combine certified oxygen cleanliness with ergonomic, one-person handling to reduce turnaround time and risk. Modular options, country-specific connections, and exchangeable charging panels align with operator standards while RH Aero’s global service and calibration programs sustain availability
