Overview

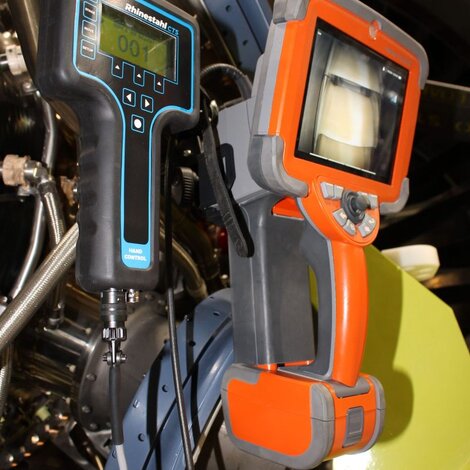

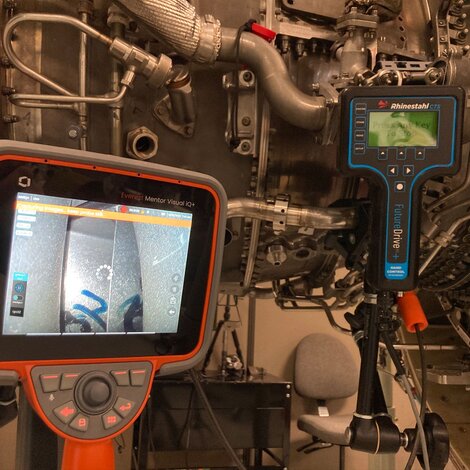

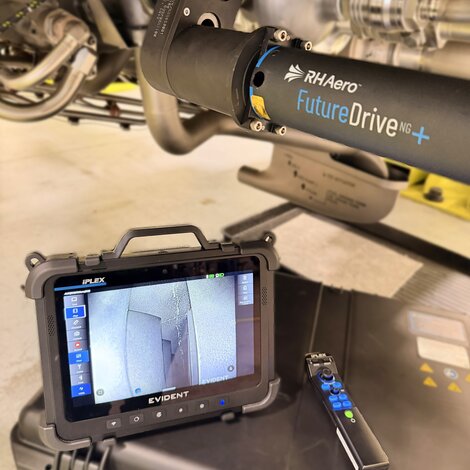

Borescope inspections require now only one technician and and no hours of hand-cranking. FutureDrive NG+, replaces manual turning with a Rolls-Royce-certified electronic drive that delivers fast, accurate, single-person inspections. The unit’s upgraded motor and electronics let you dial in up to 999 bi-directional turns, stop on any blade, flag a defect and return—without losing position. Packed in a rugged wheeled case, it plugs into any global power source and is ready to run in minutes.
Use Cases
- One-technician borescope inspections on CFM56-5/-7, GE9X, GEnx-1B/-2B, LEAP-1A/B/C, GP7200, CF6, CF34-10, LM2500, AE2100 and the entire Rolls-Royce Trent family (500-XWB).
- Scheduled shop visits or on-wing line checks where labour hours and turn-round time are critical.
- Remote AOG situations—self-seeking power supply operates on any worldwide voltage.
Benefits
Single-tech operation: Cuts labour by > 50 %, freeing a second mechanic for other tasks
Programmable, bi-directional drive: Up to 999 continuous turns; stop, mark and return to any blade position with repeatable accuracy
OEM-approved safety envelope: 2× safety factor, torque limits set from OEM data and a shear pin that breaks at 95 ft-lb to protect the gearbox

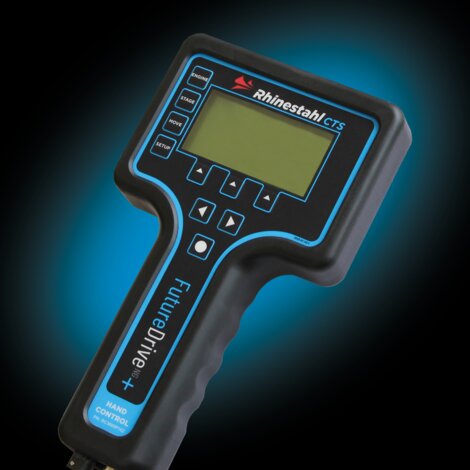

Upgraded NG+ electronics: Faster motor, expanded memory, larger display and more intuitive controls for greater precision and manoeuvrability

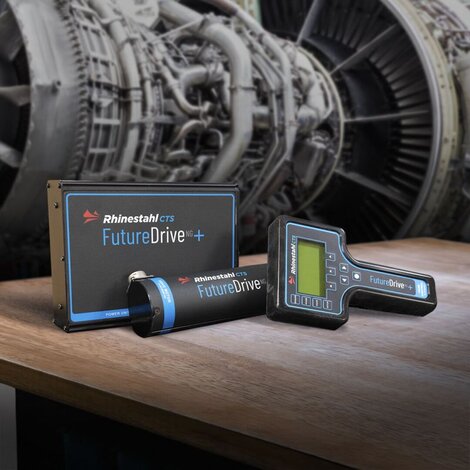

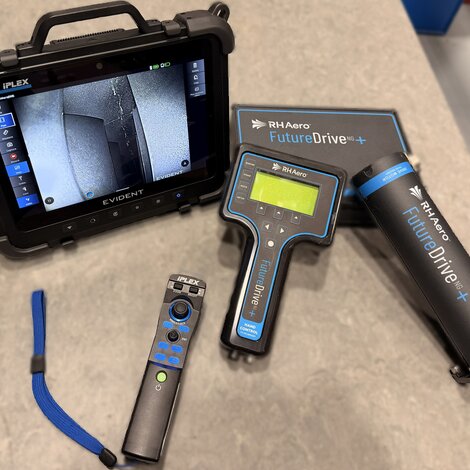

Portable, all-in-one kit: Wheeled case, quick-attach drive heads and self-seeking power supply—ready for shop, ramp or remote field work
Why RH Aero
FutureDrive NG+ embodies our ethos of doing more with less time on the ground. Through our longstanding expertise we are able to supply the industry’s leading electronic turning tool—fully OEM validated, field-proven across every major engine programme, and supported by RH Aero’s global service network. Bring it to your next borescope and experience a faster, safer, single-person workflow from first turn to final report.
