Keyfeatures
Universal Pedestal Architecture – One basic set supports multiple engines via swap-in adapter kits.

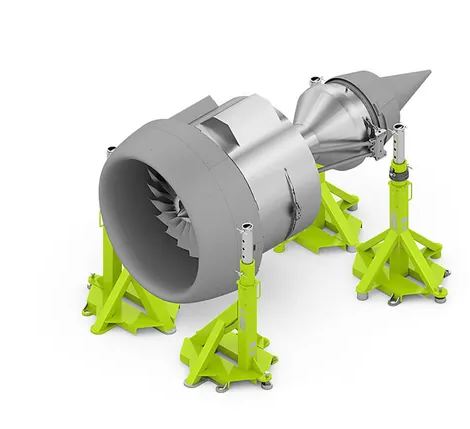

Four-Point Support Set – Two FWD and two AFT pedestals support engines at the GSE-mounts.
Engine Adapter Ecosystem – Kits cover CFM56, V2500, CF6-80, PW40xx, RB211-535E4, and Trent families.
Rated Capacity – Each set provides 2.6 t nominal capacity for supported engines.
Optional Ball Castors – Spring loaded ball castors ease precise positioning around the engine.
Highlights
Two pedestal sets cover narrow-body and wide-body fleets with fast changeovers via engine-specific adapter kits.
Airbus
A320 family • A330-200/-300 • A340 • A340-500/-600 • A380 • A330neo • A350 • A300
Boeing
B737 • B777 • B787 • B747-400 • B757 • B767
Application Cases
Engine Storage & Shop Handling – Four pedestals with engine-specific adapters for A320 family • A340 • A330-200/-300 • B737 and beyond.
On-Wing Tasks – Support at GSE-mounts with FWD/AFT adapters for installation and removal across narrow- and wide-body fleets.
Configuration Options
Safety & Operation
The basic set consists of two FWD and two AFT pedestals for secure engine support.
FWD and AFT adapters attach to the pedestals to support the engine at the GSE-mounts.
Engine adapter kits include two rear and two front adapters for each engine type.
Engine combinations change by swapping adapters while using the same pedestals.
Nominal 2.6 t capacity supports the specified engines within rated limits.
Mobility & Transport
Spring loaded ball castors (option) enable easy positioning of pedestals under mount points.
Pedestals deploy at front and rear to balance handling during setup.
Adapter kits attach quickly to the basic set for fast changeovers.
Why RH Aero?
Universal Pedestals—Adapter Flexibility
EPS standardizes engine support with a universal four-pedestal layout and cataloged adapter kits. The approach minimizes stored variants, accelerates changeovers, and maintains safe, repeatable setups across Airbus and Boeing fleets. Optional ball castors enhance positioning efficiency so crews stay productive from shop to flight line.
